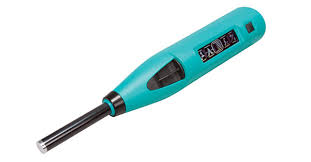

Product Information and Details Digital Hammer Test Proceq SilverSchmidt
The SilverSchmidt ST/PC is the first integrated concrete test hammer featuring true rebound value and unmatched repeatability.
Two factors contribute to the improved performance of this concrete test hammer over its predecessors:
- Velocity based detection of the rebound quotient
- The lightweight hybrid design of the impact plunger is made from aerospace alloy, matched to the elastic properties of the concrete and equipped with a hardness steel cap
Independent validation testing by BAM (Federal Institute for Materials Research and Testing, Germany) has shown the SilverSchmidt ST/PC to have less dispersion than the classical concrete test hammer over the entire range.
The unique design and high quality construction of the concrete test hammer SilverSchmidt ST/PC makes rebound hammer testing quicker and more accurate than ever before.
Features
- The SilverSchmidt ST/PC concrete test hammer combines a high measurement accuracy with an unmatched repeatability.
- The rebound value requires no angular correction
- The concrete test hammer offers customer conversion curves for a wide range of compressive concrete strengths, including low fc (<10 N/mm2, 1’450 psi) and high strength concrete (up to 100 N/mm2, 14’500 psi)
- A large number of measurement points can be easily collected by the concrete test hammer and automatically evaluated according to statistical data
- The concrete test hammer offers automatic conversion to the required measurement unit (MPa, N/mm2, kg/cm2, psi)
Technical Data
| Mechanical data | Type ST N / PC N concrete test hammer |
Type ST L / PC L concrete test hammer |
| Impact energy | 2.207 Nm | 0.735 Nm |
| Hammer mass | 135 g | 135 g |
| Spring constant | 0.79 N/mm | 0.26 N/mm |
| Spring extension | 75 mm (2.95”) | 75 mm (2.95”) |
| Housing dimensions | 55 x 55 x 255 mm (2.16” x 2.16” x 9.84”) | |
| Weight | 570 g (1.3 lb) | |
| PC application | |
| Only for the concrete test hammer SilverSchmidt versions PC N and PC L: Hammerlink Software | |
| Electrical data | |
| Display | 17 x 71 pixels; graphic / alphanumeric |
| Power consumption | ~13 mA measuring, ~4 mA setup and review, ~0.02 mA idle |
| Battery life | >5000 impacts (before recharging) |
| Charger connection | USB type B (5V, 100 mA) |
| Measuring ranges | |
| Concrete compressive strength | 10-100 N/mm2 (1450-14500 psi) |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Storage temperature | -10 to 70 °C (14 to 158 °F) |
