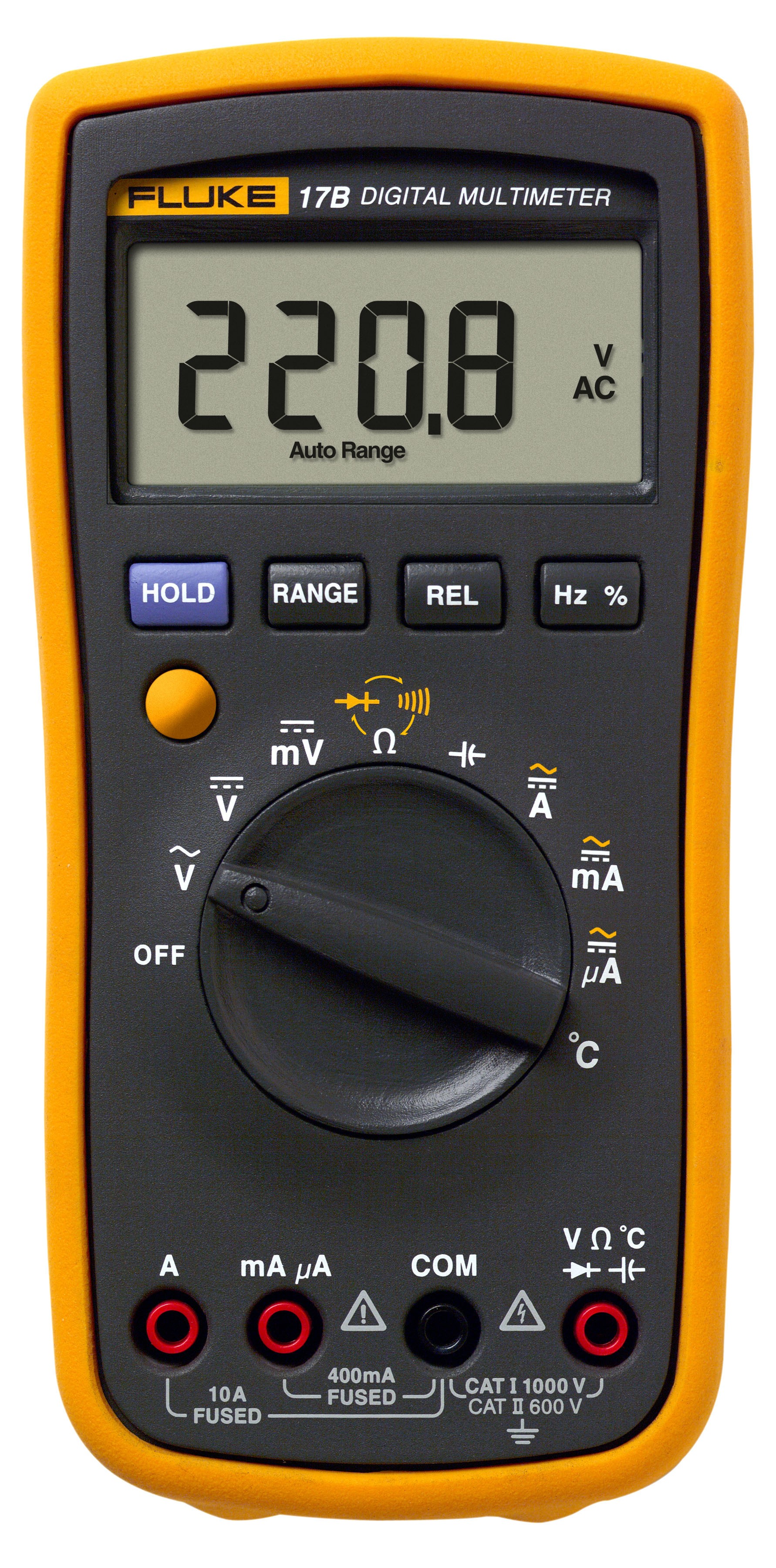

Digital Multimeter Fluke 17B
Description Digital Multimeter Fluke 17B :
4000 count digital multimeter with temperature and frequency measurement
Voltage measurement – 1000V AC/ DC
Current measurement – 10A AC/ DC
CAT-III 300 V safety rating
Frequency up to 100kHz, temperature and relative mode
With resistance and capacitance measurement functions
Data hold, continuity and diode test with beeper functions
Features Fluke 17B :
* Temperatur/ Suhu ( ° C)
* Frekuensi dan siklus duty.
* Akurasi dasar DC.
* Mode yang relatif.
* Tampilan display digital sampai 4.000.
* Pengukuran rentang secara otomatis dan manual.
* Mempunyai fungsi data hold
* Uji diode dan kontinuitas dengan buzzer.
* Memiliki standar keamanan CAT I 1.000 V, CAT II 600 V, CAT III 300 V, IEC 1010-1.
* Penggantian baterai yang mudah.
* Daya tahan baterai sampai dengan 500 Jam
* Mempunyai desain yang kuat dan kokoh untuk mengukur tegangan AC/ DC, arus AC/ DC dan resistansi dalam 1 holster.
* Frekuensi sampai dengan 100 kHz, temperature dan mode relatif.
* Termasuk uji lead dan thermocouple.
Technical Specifications
V ac
Range
Best Accuracy
AC Response
0.1 mV to 1000 V
± (1.0 % + 3 counts)
40 Hz to 500 Hz
V dc
Range
Best Accuracy
AC Response
0.1 mV to 1000 V
± (0.5 % + 3 counts)
0.1 Ω to 40 MΩ
Ohms
Range
Best Accuracy
0.1 Ω to 40 MΩ
± (0.4 % + 2 counts)
A ac
Range
Best Accuracy
AC Response
0.1 mA to 10 A
± (1.5 % + 3 counts)
40 Hz to 200 Hz
A dc
Range
Best Accuracy
0.1 mA to 10 A
± (1.0 % + 3 counts)
Capacitance
Range
Best Accuracy
0.01 nF to 100 μF
± (2.0 % + 5 counts)
Hz and Duty Cycle
Range
Best Accuracy
10 Hz to 100 kHz
± (0.1 % + 3 counts)
Temperature
measurement
Range
Best Accuracy
-55 °C to 400 °C
± (2.0 % + 1 °C)
