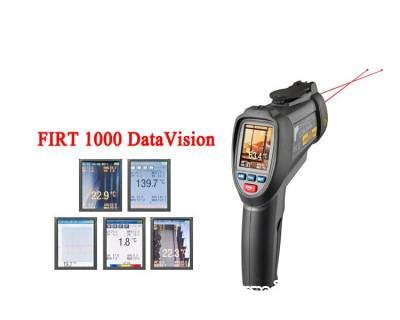

Infrared Thermometer Geo Fennel First 1000 Data Vision
Infrared thermometer with a large temperature range and integrated 2.2“ TFT colour LC display for monitoring and evaluation of monitored data.
Trades and tasks: Old-building renovation, heating, ventilation construction, building construction, food control, drying facility, isolation (heat loss)
Features
- For non-contact temperature measurement with laser point
- Short response time of 150 ms and an accuracy of ± 1,0%
- 2.2“ TFT colour LC display
- Dual laser pointer for better targeting
- Permanent measuring
- Compatible with all standard connector Type-K thermocouples
- Easy transmission of measurements to PC via USB
- Memory socket for Micro-SD Cards
- Integrated camera for images (JEPG) and video (AVI)
- Date / Time function
- Measurement of air humidity and ambient temperature
- Determination of dewpoint
Supplied with
- Battery
- USB cable
- Mini tripod
- Type-K temperature probe
- Case
Technical data
| D(istance):S(pot) | 50:1 |
| Temperature range | -50 °C – +1000 °C |
| Ø measuring spot at 100 cm | 20 mm |
| Emissivity | Einstellbar: 0,1 – 1,0 |
| Laser pointer | yes, dual |
| Auto data HOLD | yes |
| Illuminated display | yes |
| Max, Min, DIF, AVG record | yes |
| High and low alarm | yes |
| Power supply | 3,7 V Li-Ion battery |
| Response time | < 150 ms |
| Resolution | 0,1 °C – 1000 °C |
| 1 °C over 1000 °C | |
| Temperature range Type-K probe | 50 °C – +1370 °C |
| Accuracy (IR) (+20 °C – +400 °C) | ± 1,0% ±1 °C |
| Accuracy (TK) (-50 °C – +1370 °C) | ± 0,5% ± 1,5 °C |
| Laser class | 2 |
| Weight | 0,45 kg |
| Dimensions | 205 x 62 x 155 mm |
