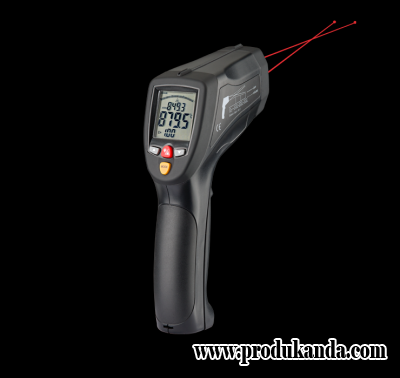

Infrared Thermometer Geo Fennel FIRT 1600 Data
For very high temperature measurements.
With integrated memory for monitoring and analysis.
Trades and tasks: Foundry, monitoring of: brake drums, discs, electric motors, exhaust systems
Features
- For non-contact temperature measurement with laser point
- 150 ms fast sampling with 1% accuracy
- High temperature range
- Built-in dual laser pointers for accurate targeting
- Permanent measuring
- Compatible with all standard connector Type-K thermocouples
- USB interface
- Memory for 99 measurements
- Easy transmission of data to PC via USB interface
Supplied with
- Battery
- USB cable
- Mini tripod
- Type-K temperature probe
- Case
Technical data
| D(istance):S(pot) | 50:1 |
| Temperature range | -50 °C – +1600 °C |
| Ø measuring spot at 100 cm | 20 mm |
| Emissivity | adjustable 0,1 – 1,0 |
| Laser pointer | yes, dual |
| Auto data HOLD | yes |
| Illuminated display | yes |
| Max, Min, DIF, AVG record | yes |
| Power supply | 9 V Li-Ion battery |
| Response time | Less than 150 ms |
| Resolution | 0,1 °C – 1000 °C |
| 1 °C over 1000 °C | |
| Temperature range Type-K probe | 50 °C – +1370 °C |
| Accuracy (IR) (+20 °C – +400 °C) | ± 1,0% ±1 °C |
| Accuracy (TK) (-50 °C – +1370 °C) | ± 1,5% of reading + 3 °C |
| Laser class | 2 |
| Weight | 0,3 kg |
| Dimensions | 204 x 155 x 52 mm |
