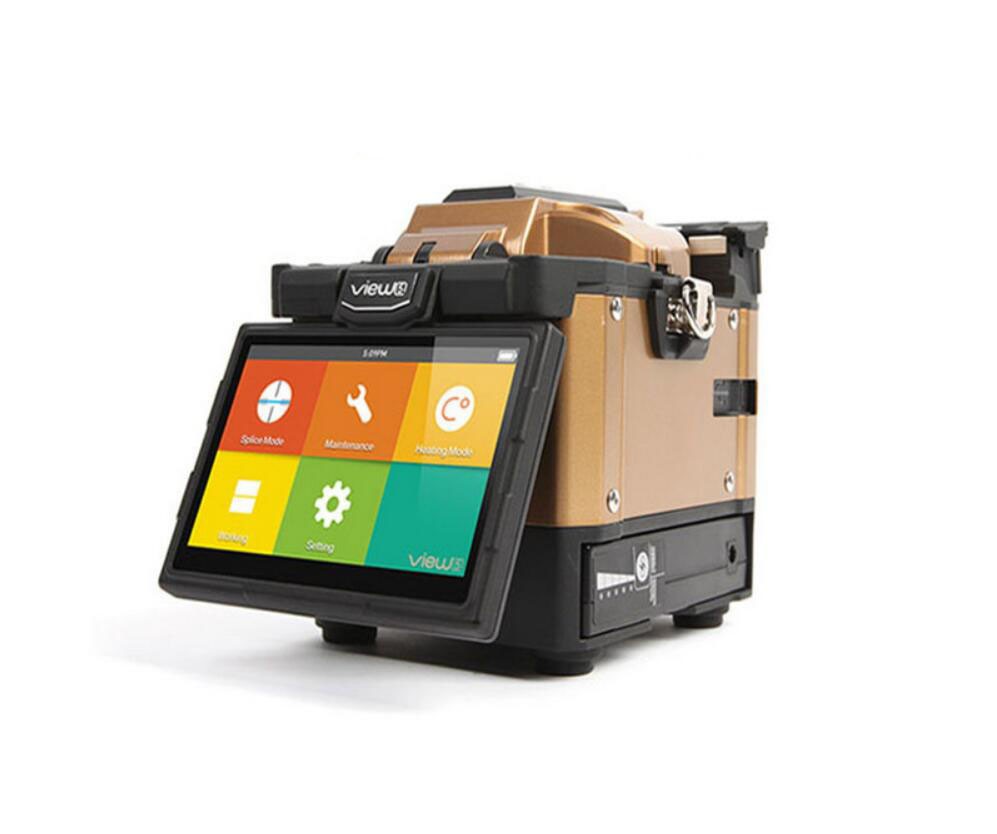

Optical Fiber Fusion Splicer INNO View 5 Splicing Alat sambung serat Optik
FEATURES :
Core Alignment Splicing Method with DACAS
( Digital Analysis Core Alignment System)
The World’ s Highest Magnification and Resolution
5” High-Resolution Color LCD Touch Screen
User-friendly Smart GUI
Double Tap to Zoom in & out
Fast Heating Time
Detachable SOC Holder and Heating Oven
High Capacity Battery
3 Bright LEDs and Illuminated Keypads
For Dark Environment
Ceramic Clamp for Improved Durability
Easy to Replace Electrodes
Harsh Weather Conditions Adaptability
1.85kg weight ( without battery)

Specification :
Model    View 5
Dimension    147H x 130W x 155D mm
Weight    2.21KG (with battery) / 1.85KG (without battery)
Number of Fiber    Single
Applicable Fibers    SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable    0.25~3.0 mm / Indoor Cable
Cleaved Length    Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter    80~150 μm
Splicing Mode    Max 128 modes
Heating Mode    Max 32 modes
Typical Splice Loss    SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB(ITU-T Standard)
Return Loss    >> 60 dB
Lighting    3 White LEDs
Splicing Time    Quick mode : 7 sec / Auto mode : 9 sec
Estimated Splice Loss    Available
Protection Sleeve Length    20~60 mm
Heating Time    FP-03 typical heating time: 13 sec
Results Storage    The last 2000 results
Tension Test    1.96~2.25N
Operating Condition    Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition    0~95% relative humidity, -40~80°C
Display    90° bi-directional view, 5.0” Color High Resolution Display
Fiber View & Magnification    X, Y, XY, X/Y : 520X Magnification
Power Supply    AC Input 100-240V, DC Input 9-14V
No. of Splice / Heating with Battery    4200mAh Battery Capacity, Typical 170 times (Splice+Heat)
Operating Methods    Button / Touch screen
Automatic Calibration    Automatic arc calibration by air pressure and temperature
Electrode Life    3500 arcs, can be extended by using an electrode grinder
Terminal    USB2.0 / MINI USB
